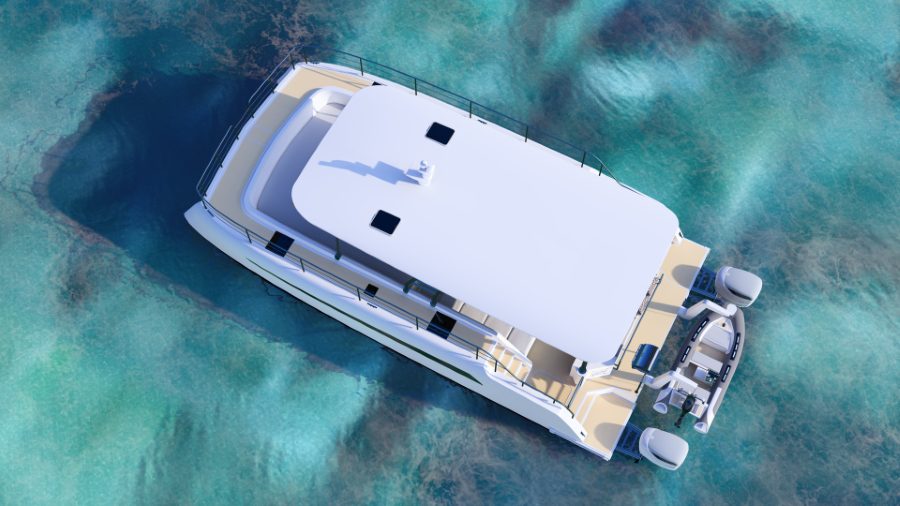

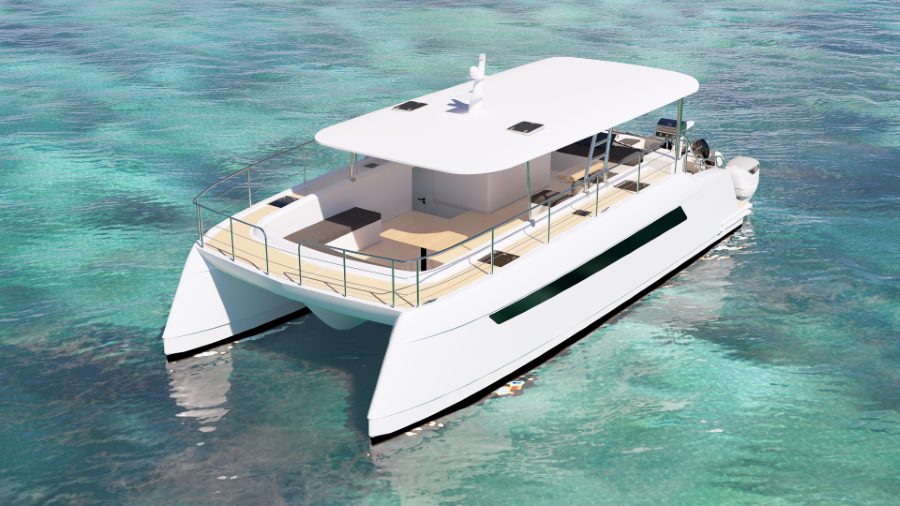

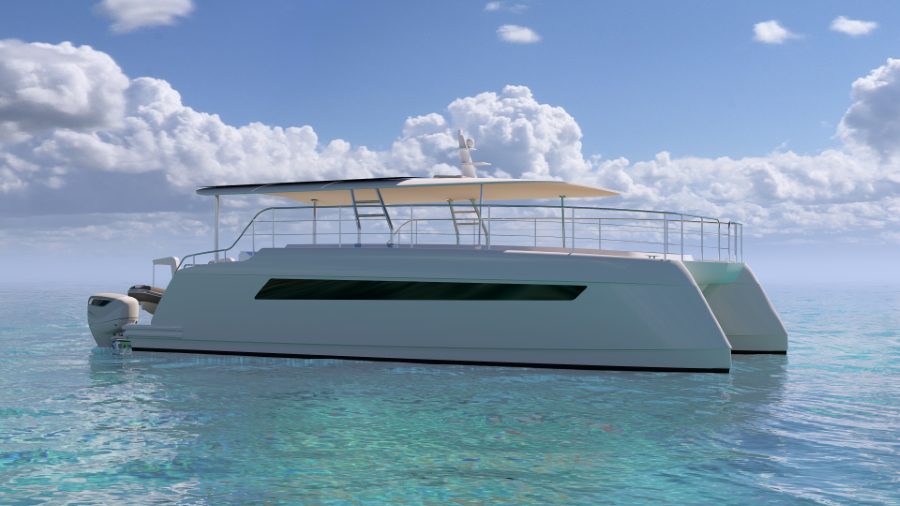

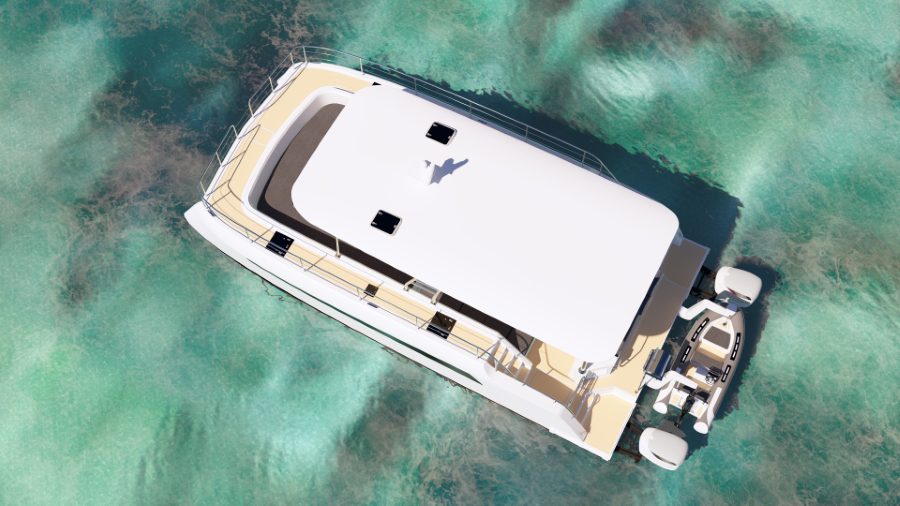

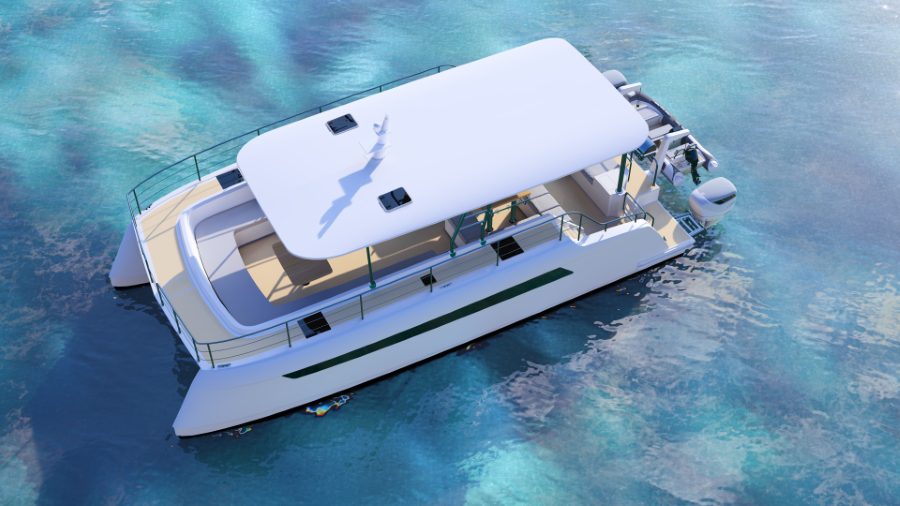

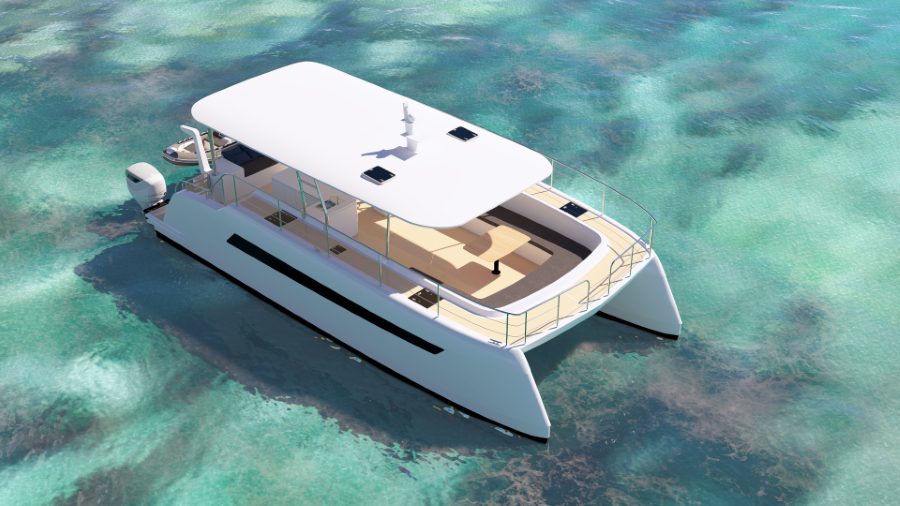

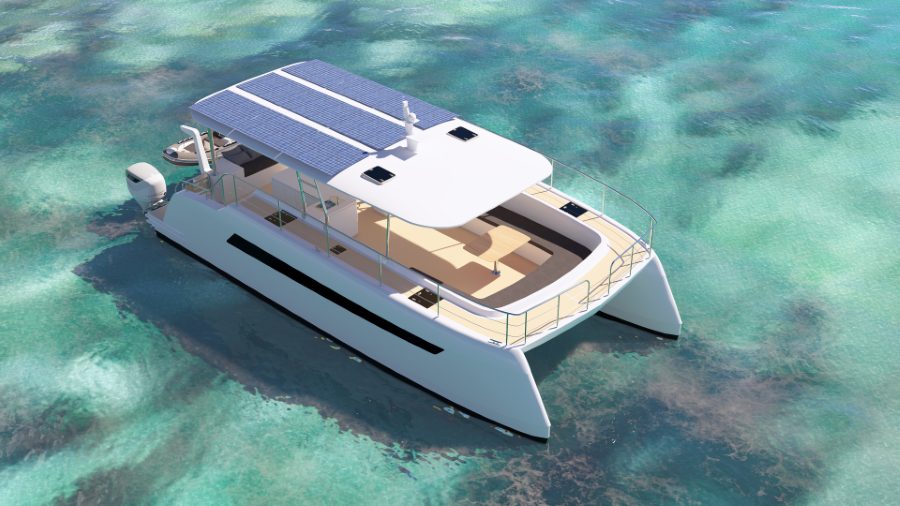

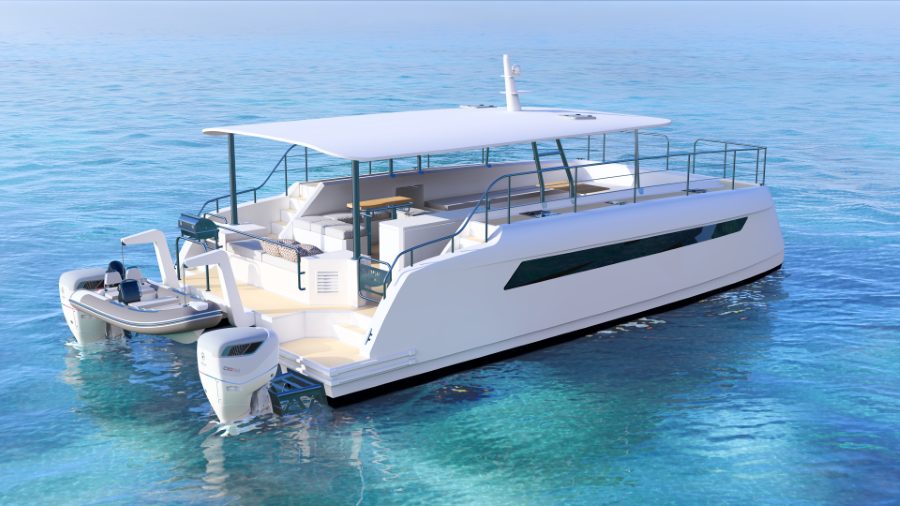

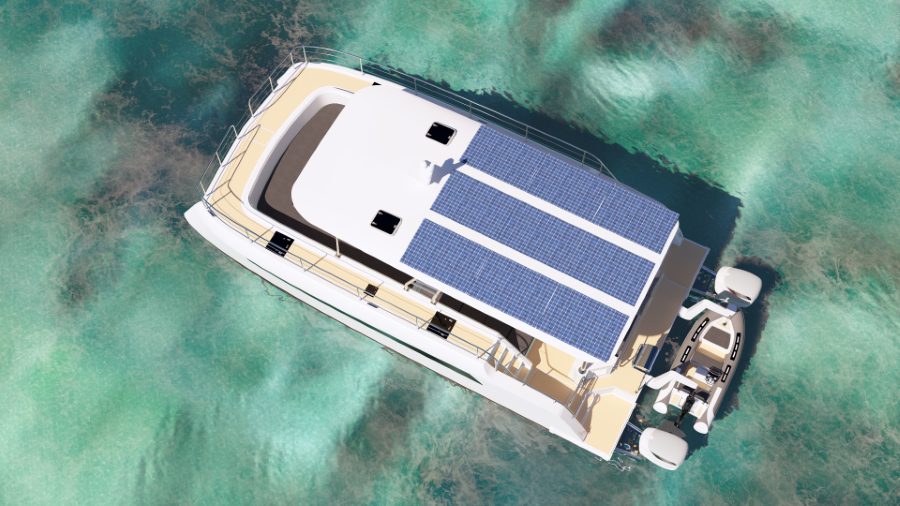

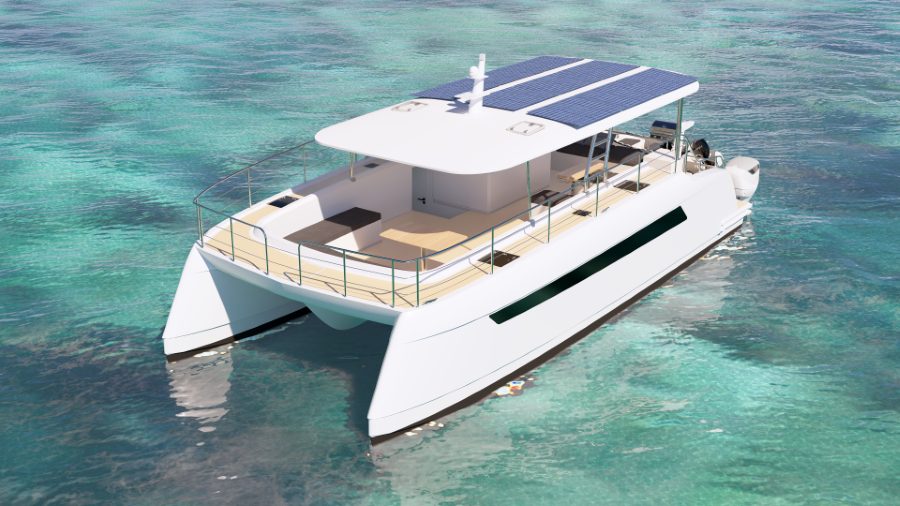

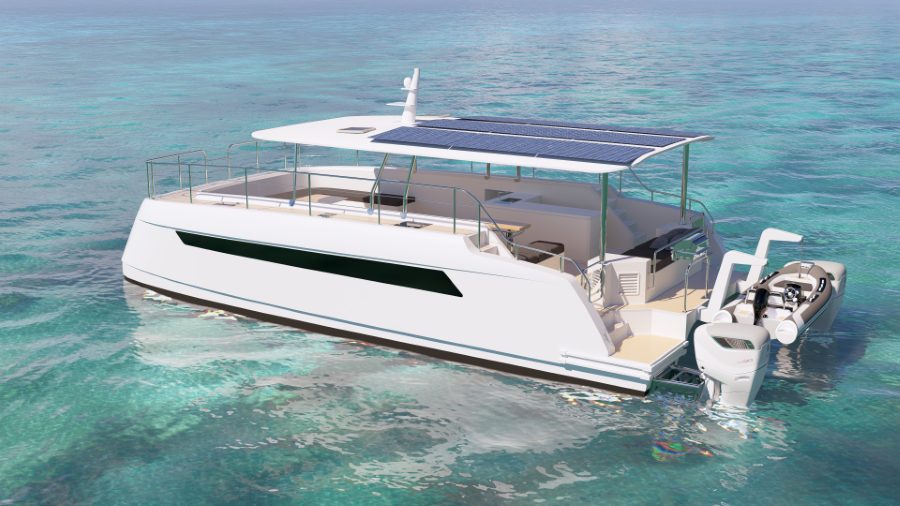

Powerplay 42 Resort Catamaran
The PP42 Resort is a purpose-built 44-passenger power catamaran engineered for high-capacity transport, day charters, and luxury island transfers.
Crafted using advanced FRP vacuum infusion and designed to ISO standards, it offers a balance of rugged durability and elegant functionality.
Whether beach-landing on remote shores or entertaining guests in style, this vessel delivers unmatched versatility and efficiency in every nautical mile.
Built for Performance. Designed for Comfort. Ready for the Tropics.
The PP42 Resort is a purpose-built 44-passenger power catamaran engineered for high-capacity transport, day charters, and luxury island transfers.
Crafted using advanced FRP vacuum infusion and designed to ISO standards, it offers a balance of rugged durability and elegant functionality.
Whether beach-landing on remote shores or entertaining guests in style, this vessel delivers unmatched versatility and efficiency in every nautical mile.
Type: Day charter open deck catamaran
Configuration: Center console helm with hardtop (clears optional)
Capacity: 44 passengers + 3 crew
Build: Fully molded, vacuum-infused FRP using vinyl ester resin with PVC core
Finish: Gelcoat exterior, roller coat interior
Compliance: ISO Standard 1227 structural design
| Spec | Value |
|---|
| Length Overall (LOA) | 12.0 m (40’) |
| LOA with Pod | 12.85 m (42.5’) |
| Beam Overall | 6.050 m |
| Draft (Light Ship) | 550 mm |
| Bridge Deck Clearance | 700 mm |
| Air Draft (from DWL) | 6.700 m |
| Displacement (Light Ship) | 7,000 kg |
| Full Load Displacement | 12,000 kg |
| Passenger Load | 44 people (3,300 kg) |
| Fuel Capacity | 2 × 400 L (800 L total) |
| Water Capacity | 2 × 300 L (600 L total) |
| Holding Tanks | 2 × 180 L (360 L total) |
| Engine Spec | Owner supplied – 250–450 hp |
| Cruise Speed (Half Load) | TBA |
| Top Speed | TBA |
Base Price (Ex-Factory, Thailand): USD 248,000
Engine Cost: Optional / Owner supplied
Total Price: USD 248,000 (excluding VAT, engine, and options)
Roller coat flow finish
Gelcoat composite doors
Sprayed non-slip flooring
100mm medium foam mattresses with cover
2 × 110L under-counter fridges

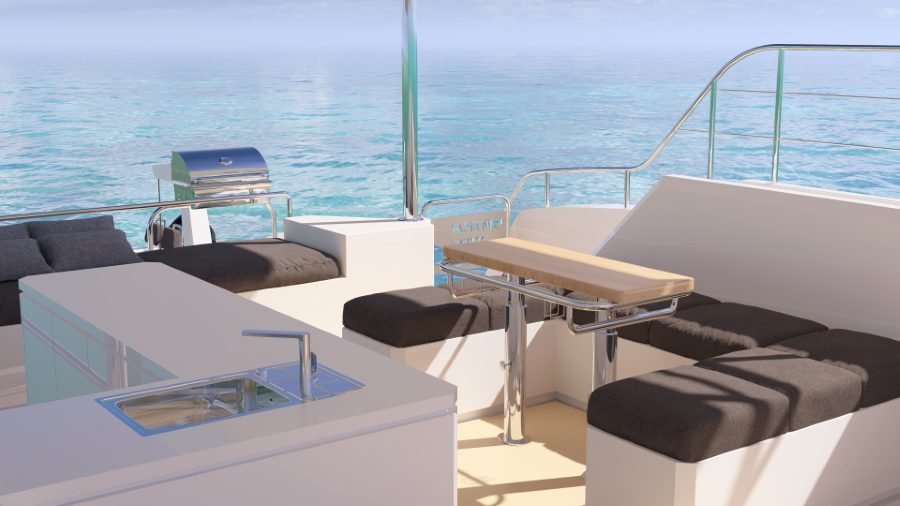

Stainless steel sink
Cabinets beneath counter
Wet head: Shower + hand basin (H/C mixer)
Sump to holding tank
Freshwater toilets
White gelcoat finish
Teak seat grates
Owner supplied outboard (250–450 hp)
Hydraulic or electric steering
2 × 400L aluminium petrol tanks
Optional: Panda Neo 5000 genset (90L diesel tank)
Optional: Whisper Gen 6kVA
| Specification | Details |
|---|---|
| Length Overall (LOA) | 12.0 m (40’) |
| LOA with Pod | 12.85 m (42.5’) |
| Beam Overall | 6.050 m |
| Draft (Light Ship) | 550 mm |
| Bridge Deck Clearance | 700 mm |
| Air Draft (from DWL) | 6.700 m |
| Displacement Light Ship | 7,000 kg |
| Full Load Displacement | 12,000 kg |
| Passenger Load | 3,300 kg |
| Fuel Capacity | 2 × 400L (800L total) |
| Water Capacity | 2 × 300L (600L total) |
| Holding Tank Capacity | 2 × 180L (360L total) |
| Engine Spec | Owner supplied (250–450 hp) |
| Top Speed | TBA |
| Cruising Speed (Half Load) | TBA |
Non-slip white finish
2 fuel, 2 freshwater, and 2 waste fittings
32mm SS handrails (750mm high, 4mm life lines)
Nylon bow roller + SS bollard
6 × 300mm mooring cleats
4 × Vetus flush hatches
Muir Windlass VR2500 + 45kg anchor + 50m chain
3 × mooring lines (18mm)
3 × fenders (900 × 30mm)
Tinted toughened glass side windows
Non-slip white painted deck

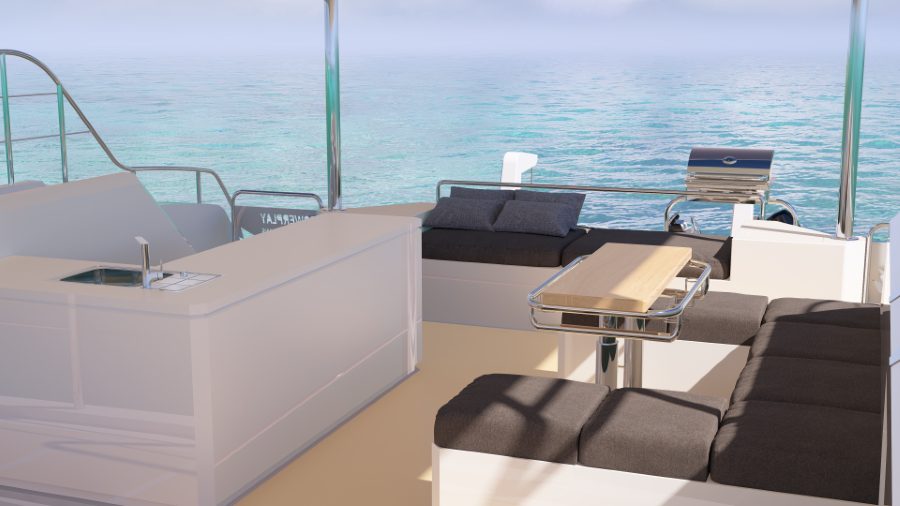

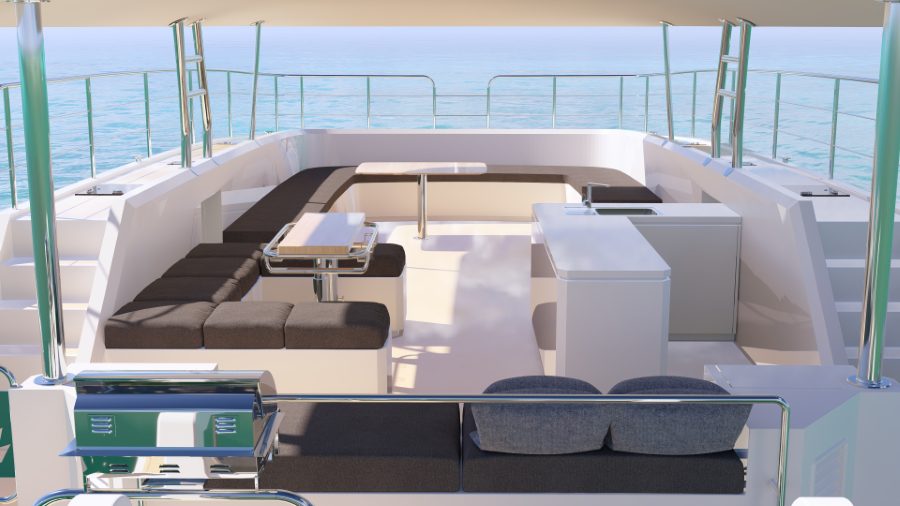

Full-width aft settee (Sunbrella fabric or similar)
2 × Ice chests
BBQ power connection
Transom shower (H/C)
Deck drain sump at door

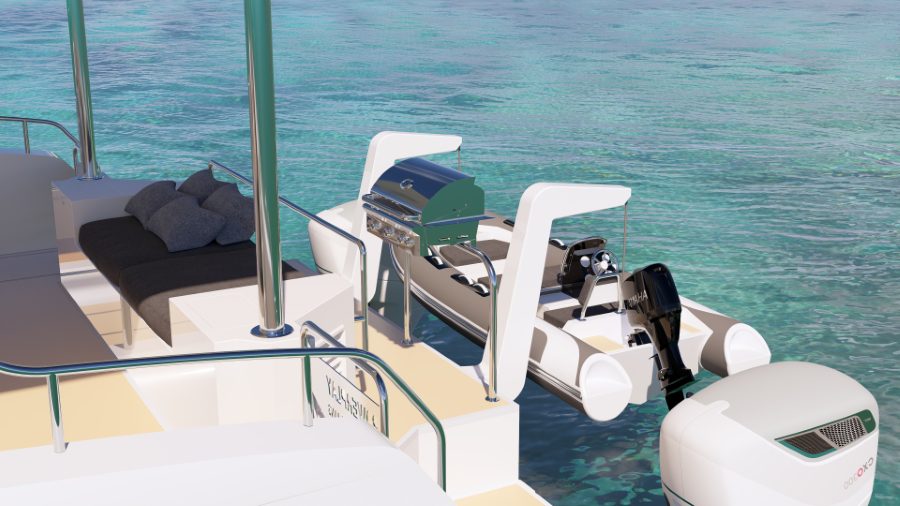

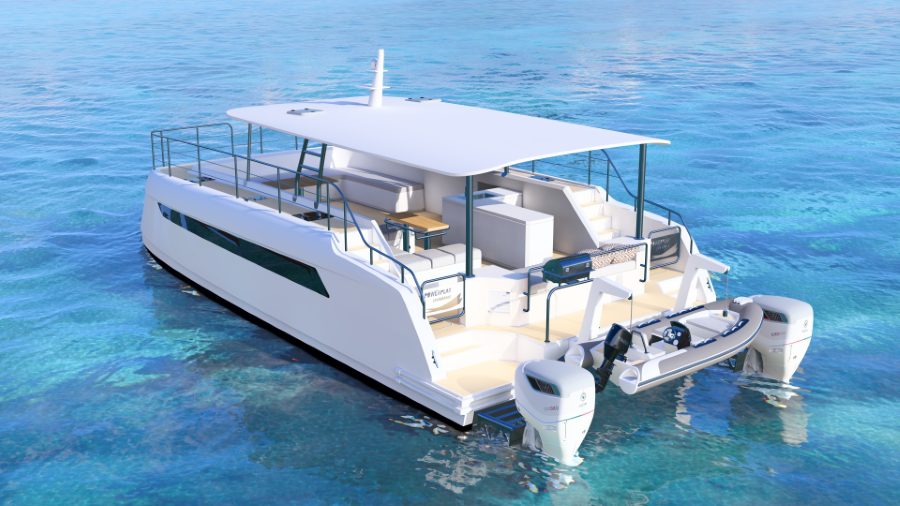

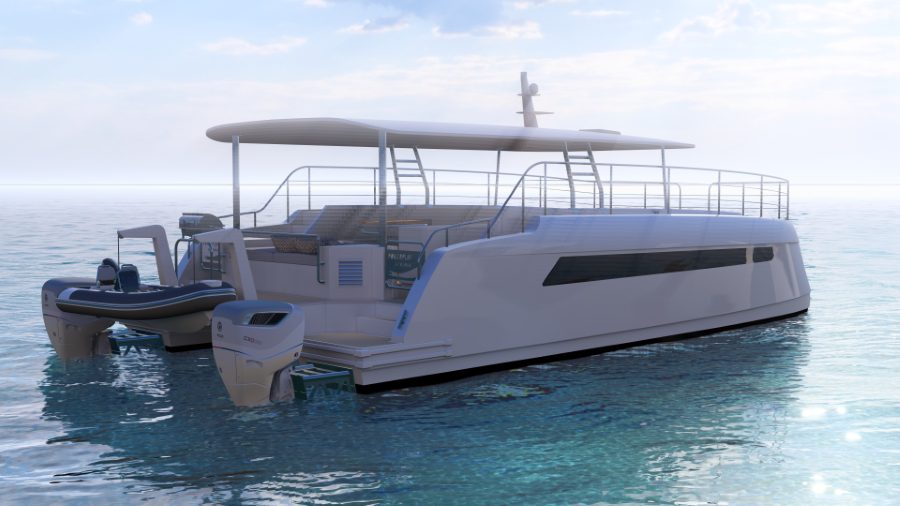

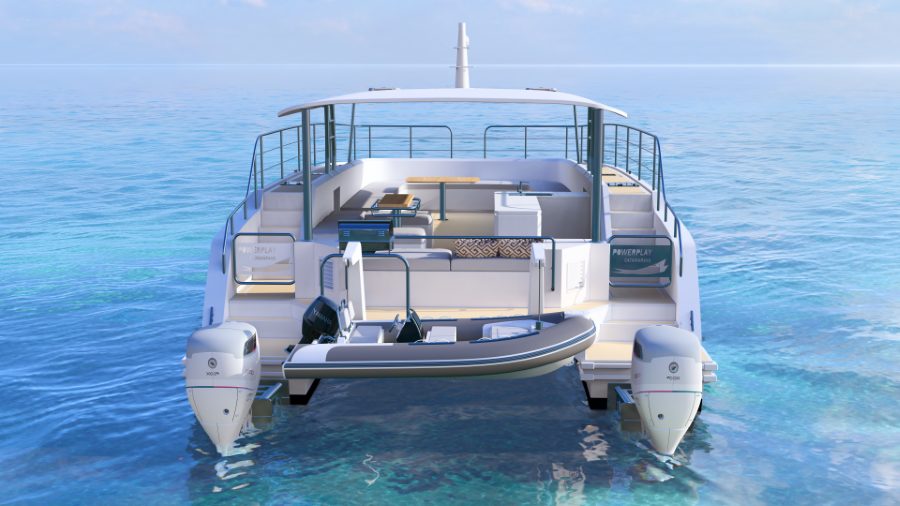

Composite davits for tender (max 3m / 100kg / 15hp)
House batteries: 4 × AGM 220Ah (880Ah total)
Engine start: 2 × AGM 130Ah
Inverter/Charger Option: 12/3000–100
AC: 220V 50Hz system (BEP panels)
DC: 12V system (BEP panels)
Shore power inlet: 15A with isolators & RCD
LED nav + 24 interior lights
8 deck lights + 4 floodlights (fore and aft)
Electrical sockets: 4
Optional: Underwater lights (4–6)
Aircon Option: Pure Mind Reverse Cycle (2 × 5000 BTU)
Wiring: AS 3000 spec marine tinned wire
“John Guest” quick-connect plumbing
Whale pressure pumps (2 × 12V)
Hot water: 60L Quick (220V, genset dependent)
2 × 180L holding tanks with manual shut-off + deck pump out
2 × 750GPH bilge pumps per hull + 4 float switch/manual combo
Toilets: 2 × TMC or Jabsco low profile
| Optional Equipment | Price (USD) |
|---|---|
| Cookout BBQ Classic Electric | $1,800 |
| Inverter Charger 3000W (Local brand) | $3,500 |
| Chain Counter | $1,200 |
| Main Deck Clears | $7,500 |
| Sound System (Fusion or Hertz – single zone) | $3,500 |
| Microwave | $600 |
| Genset (6kVA–8kVA) | $19,500 |
| Lifting Platform | $12,800 |
Mercury: Twin 90, 115, 200, 250, 300 hp
Yamaha/Mercury: Twin 355 hp
Diesel: Twin Cox 300/350 hp outboards
Yanmar: Twin 315 hp with Bravo stern drives

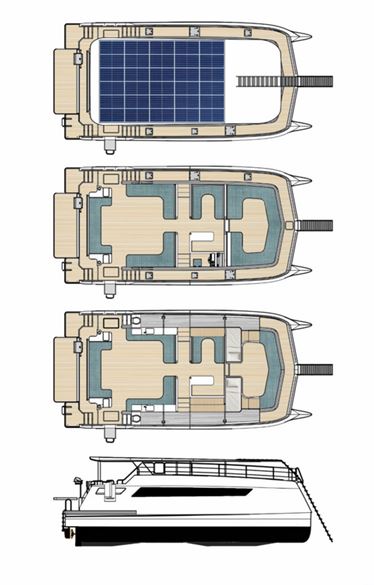

Layout:
