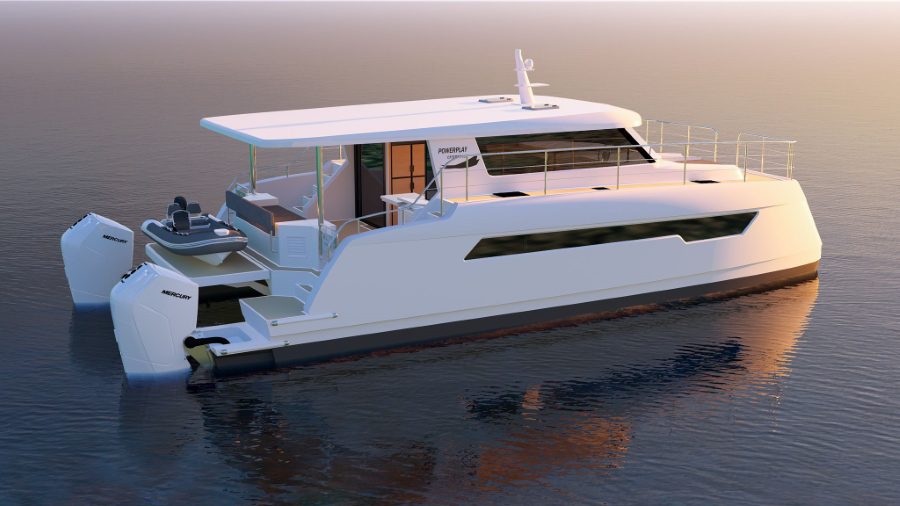

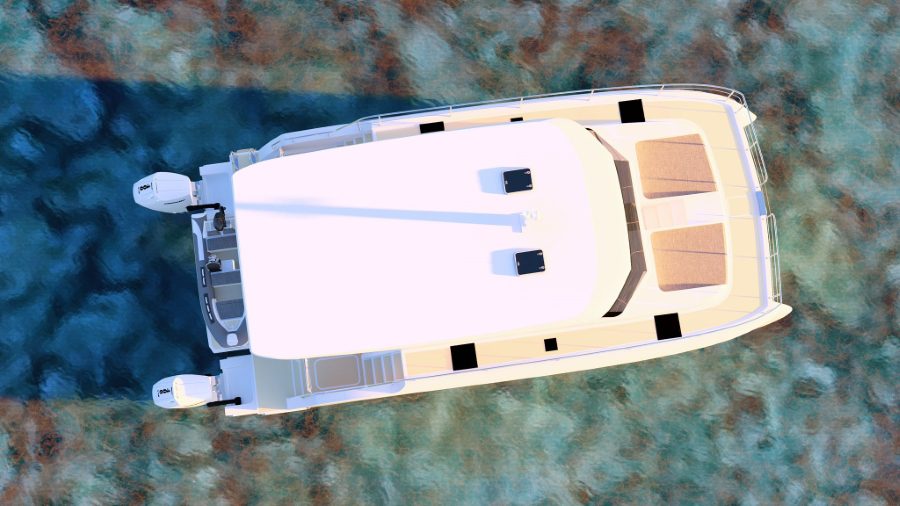

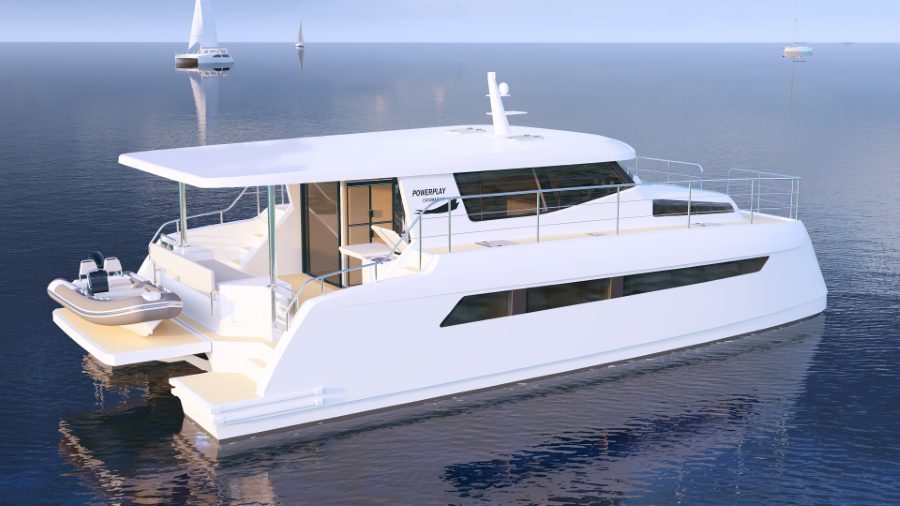

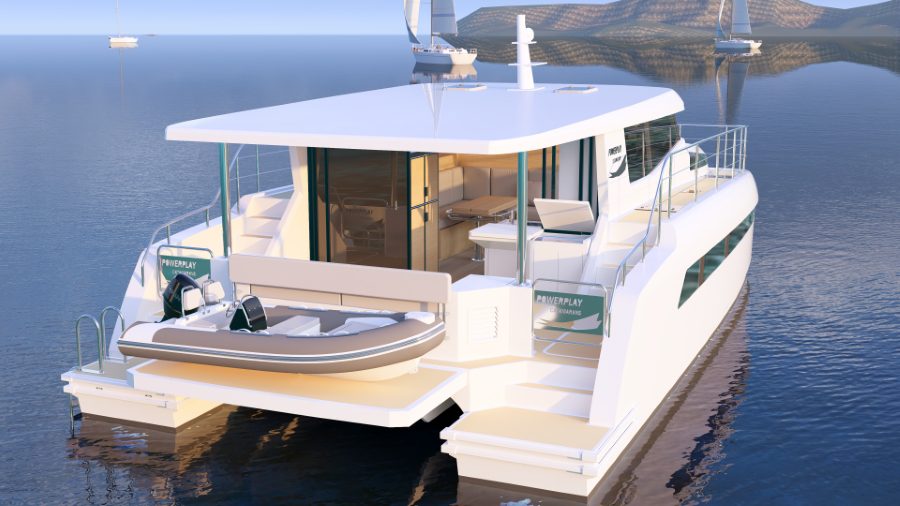

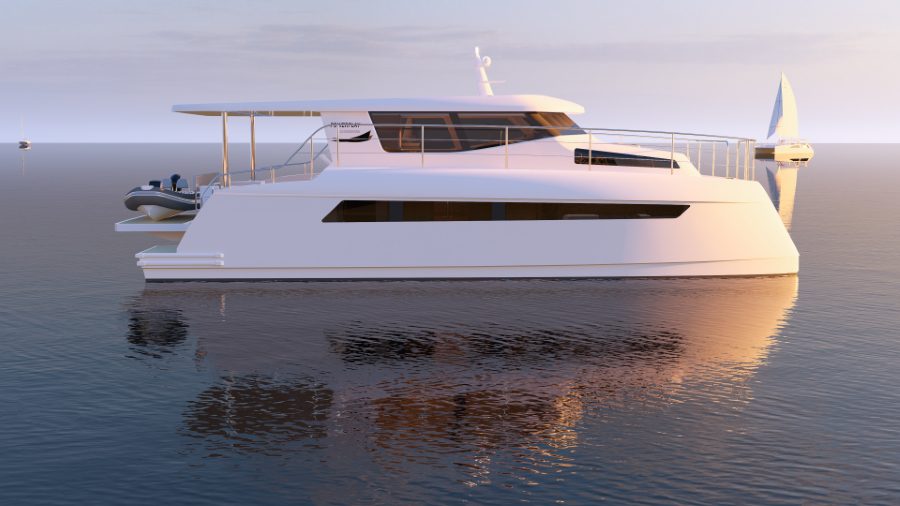

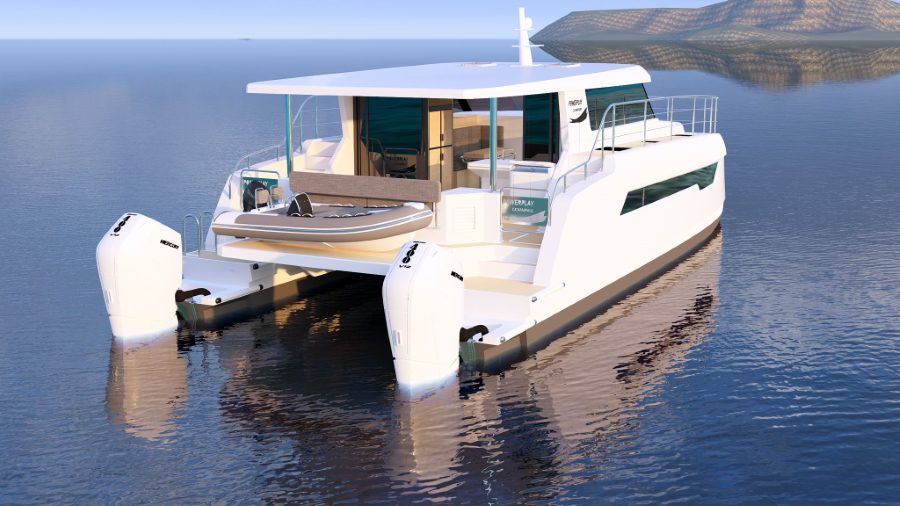

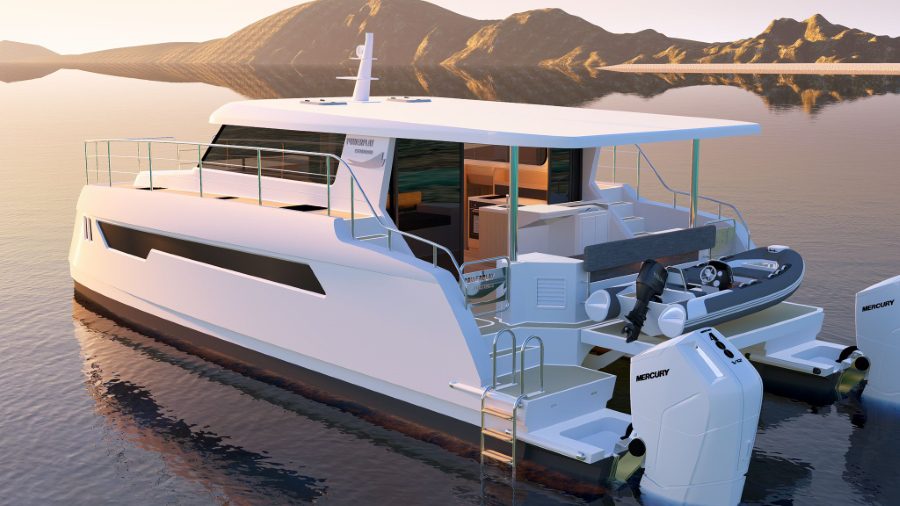

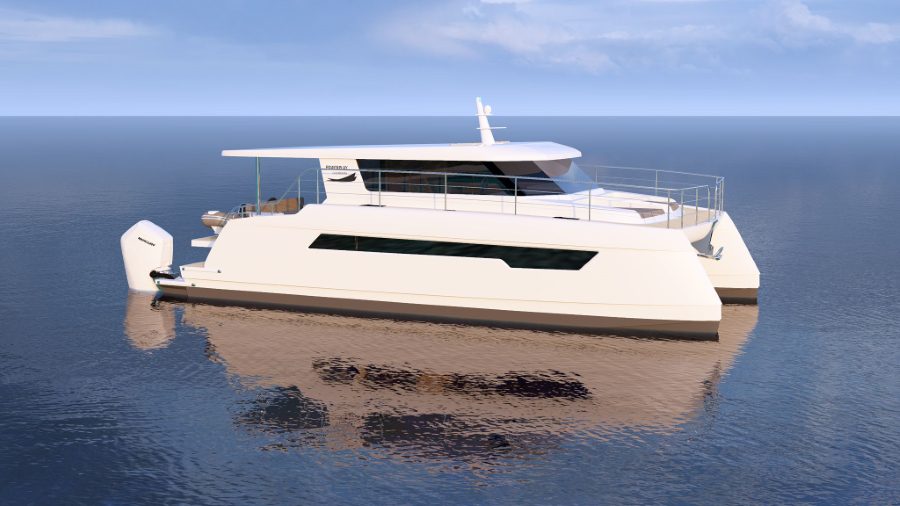

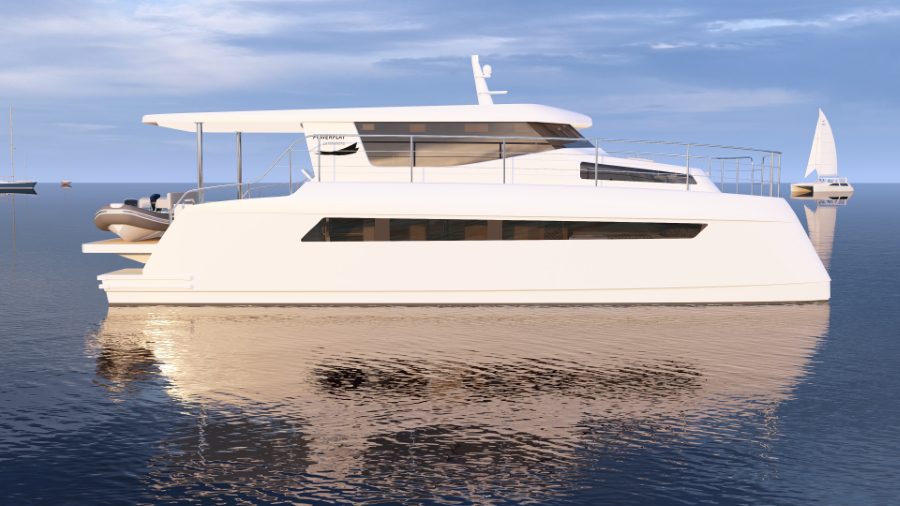

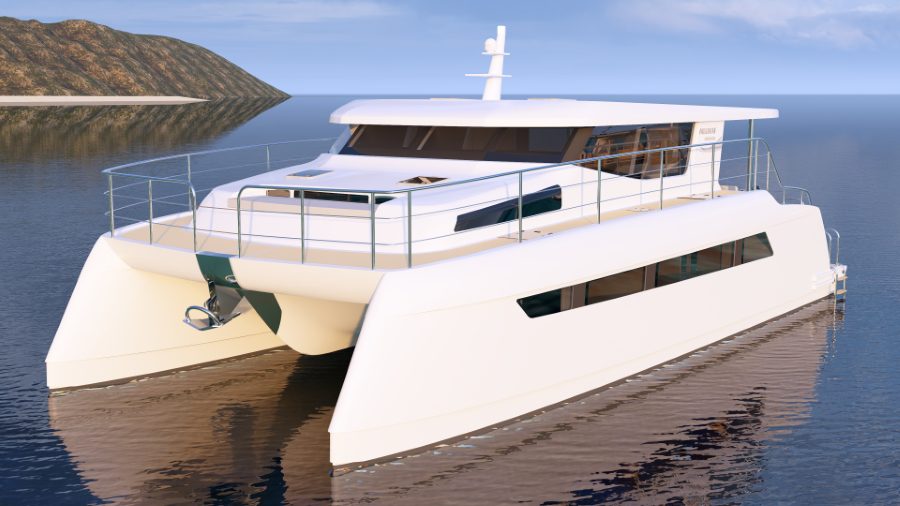

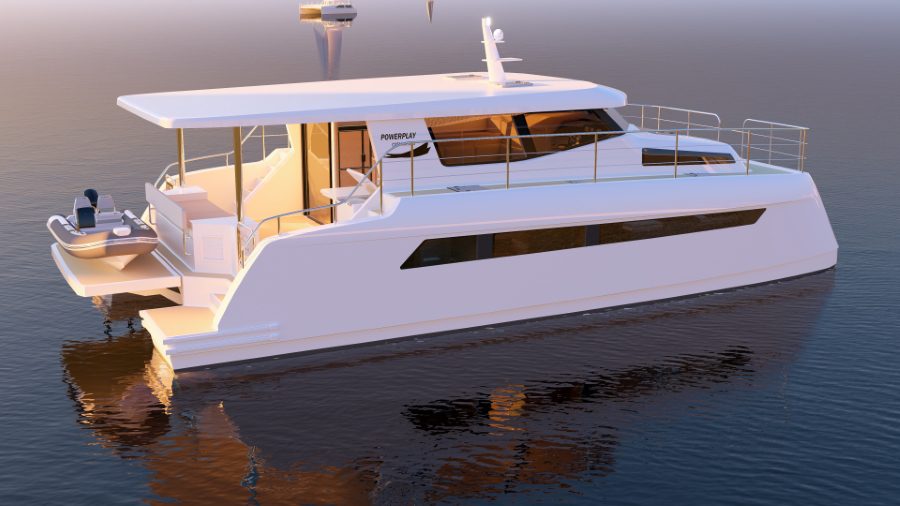

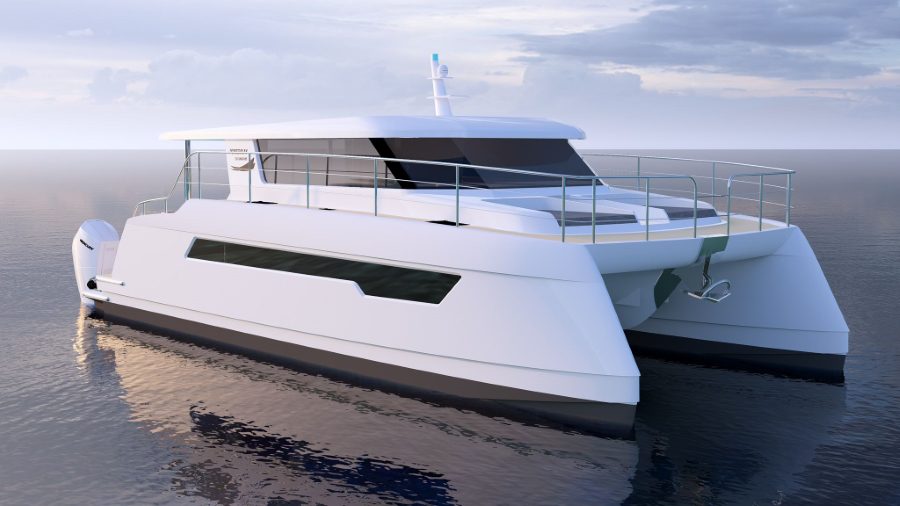

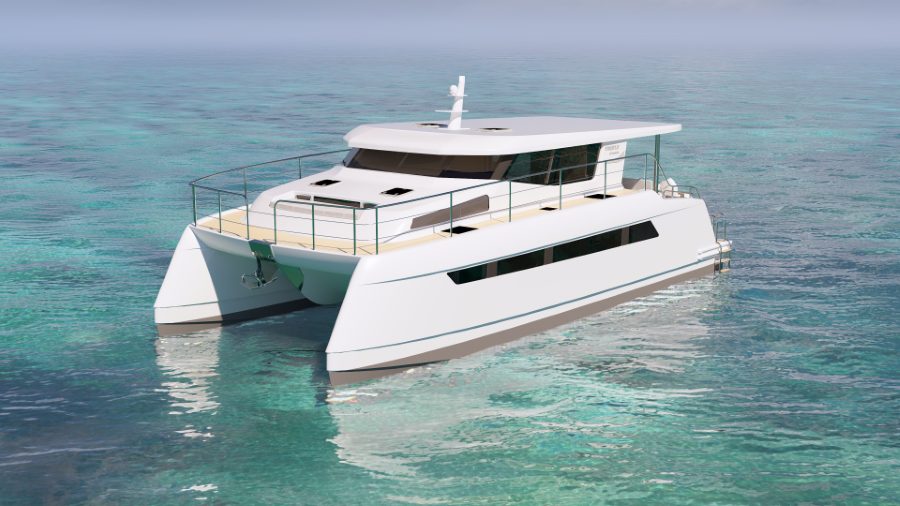

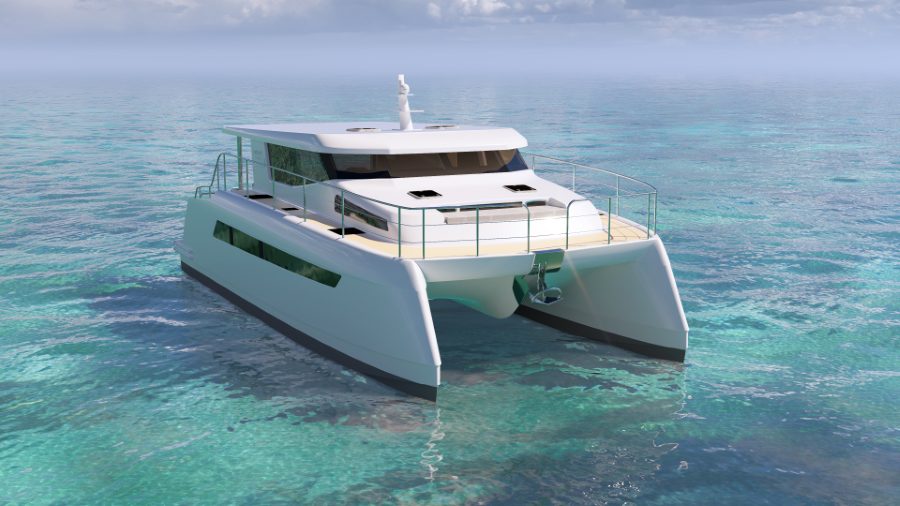

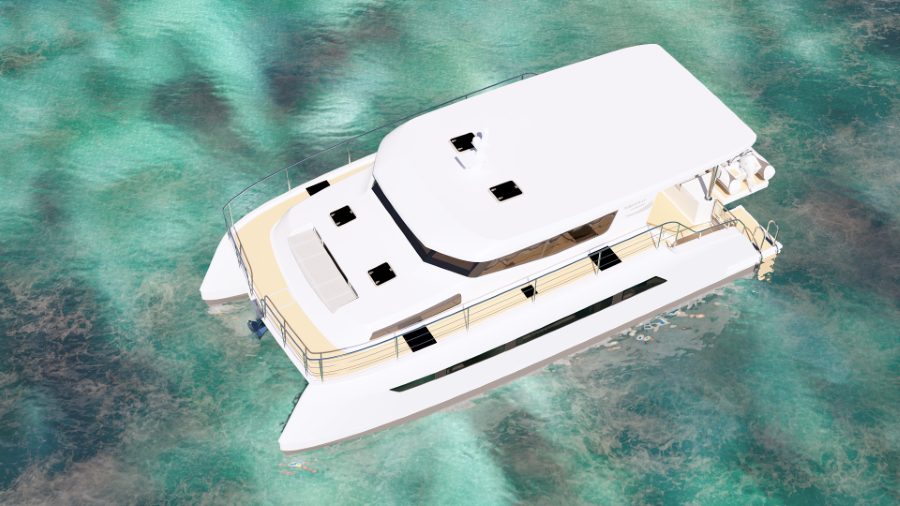

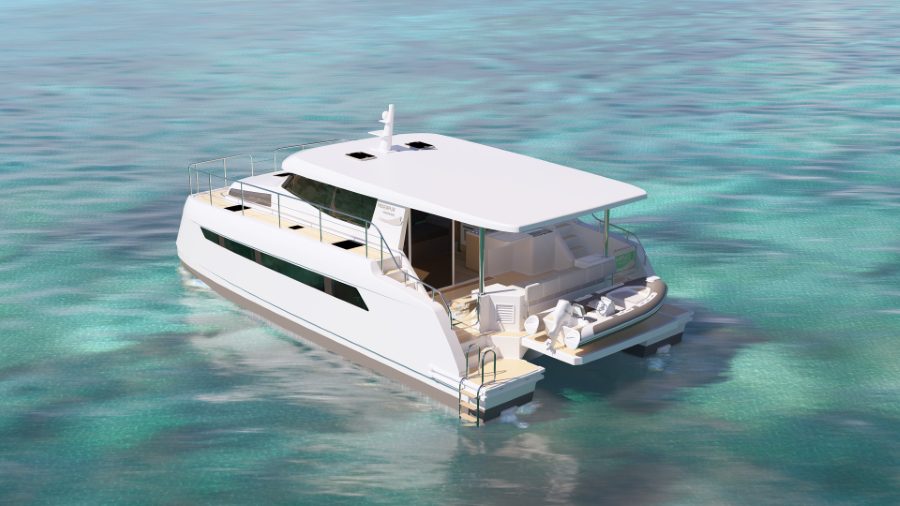

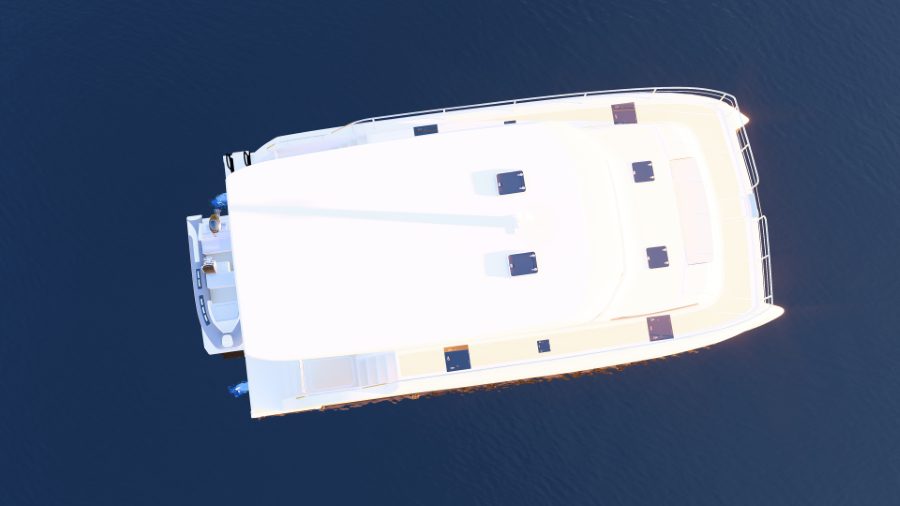

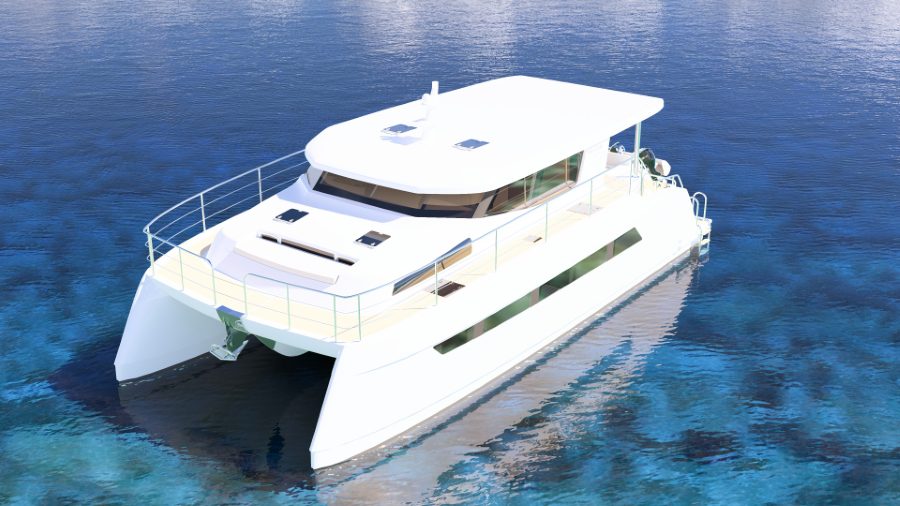

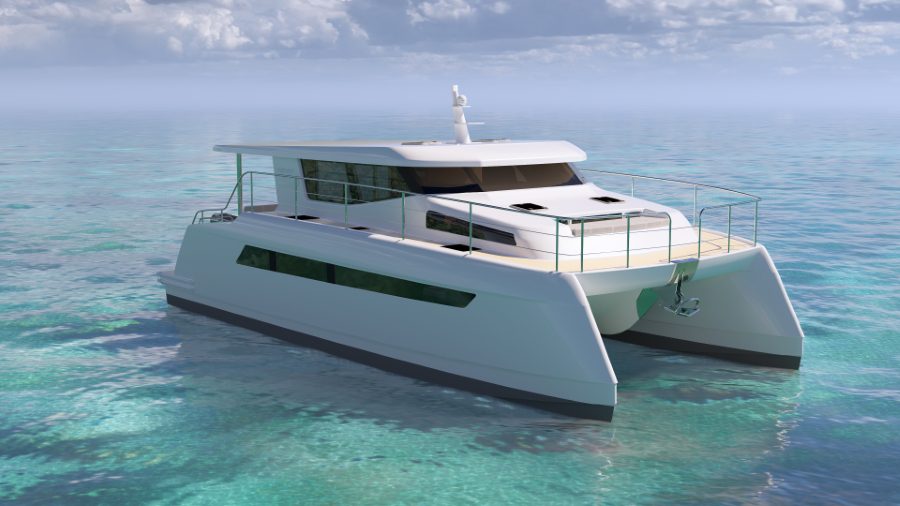

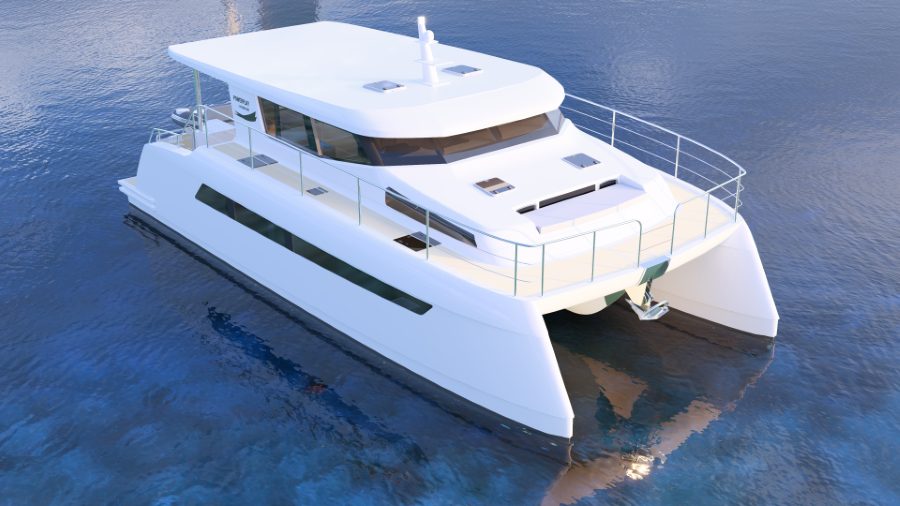

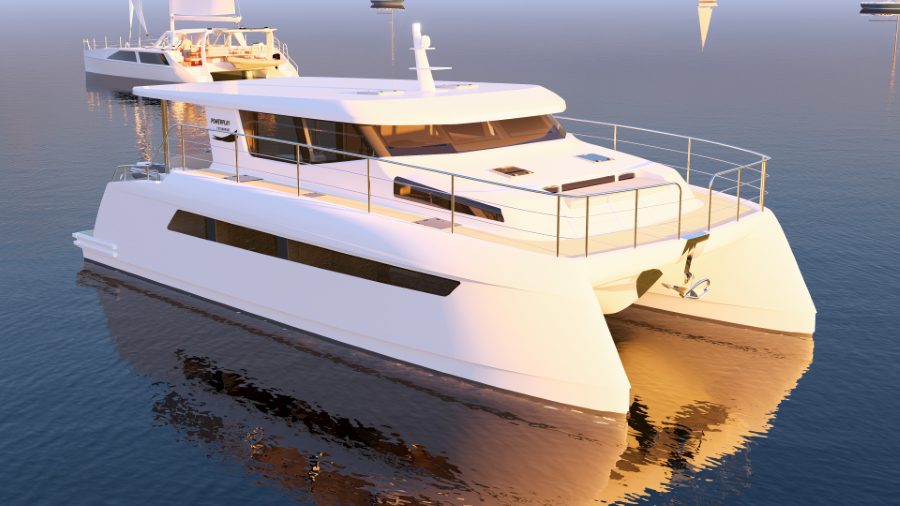

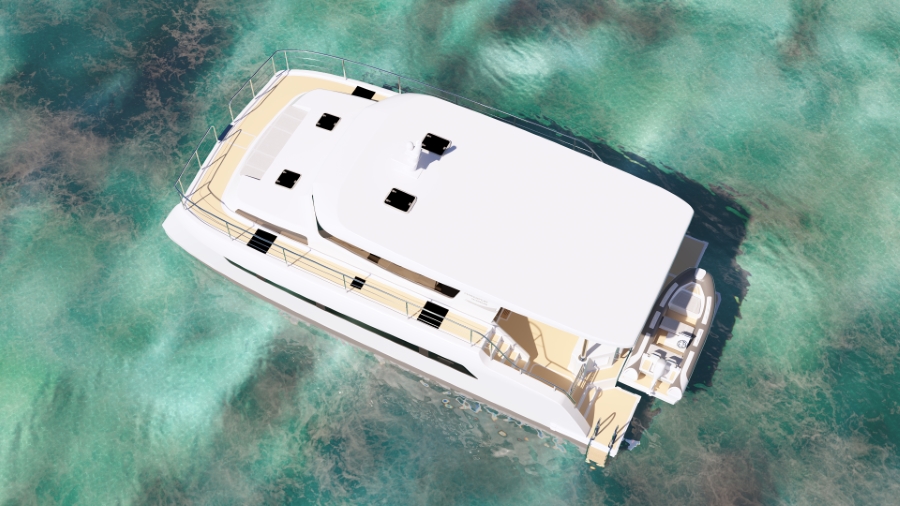

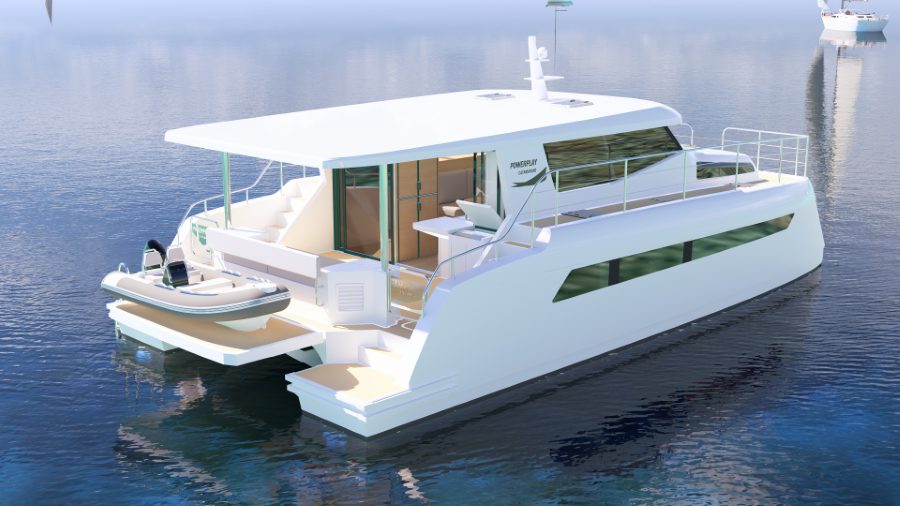

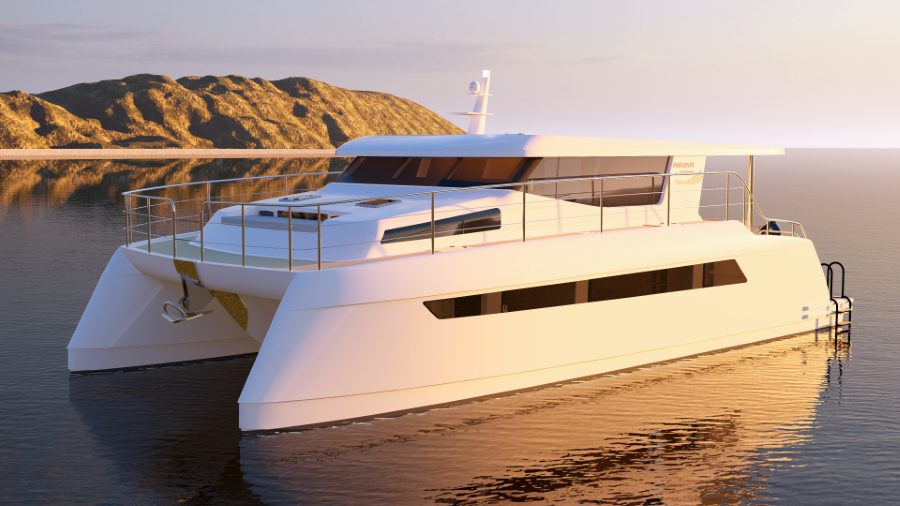

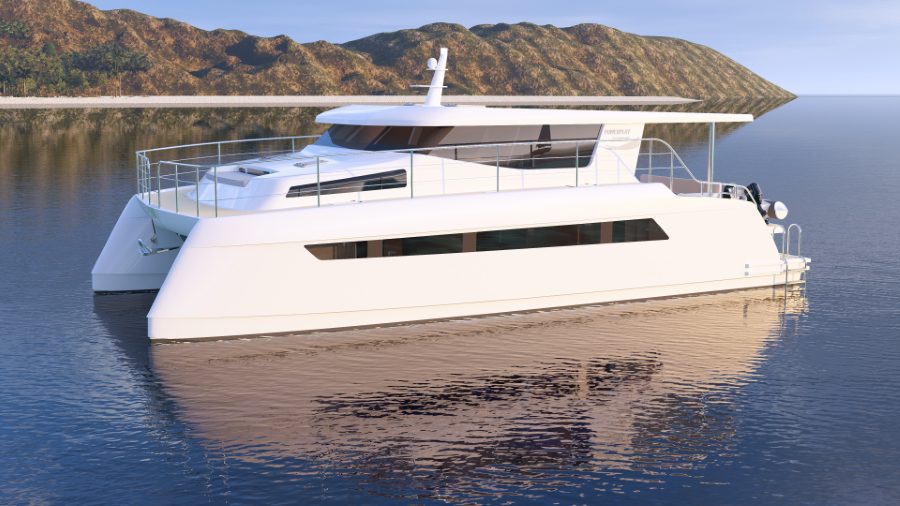

Model: Powerplay 40 – Sedan Option

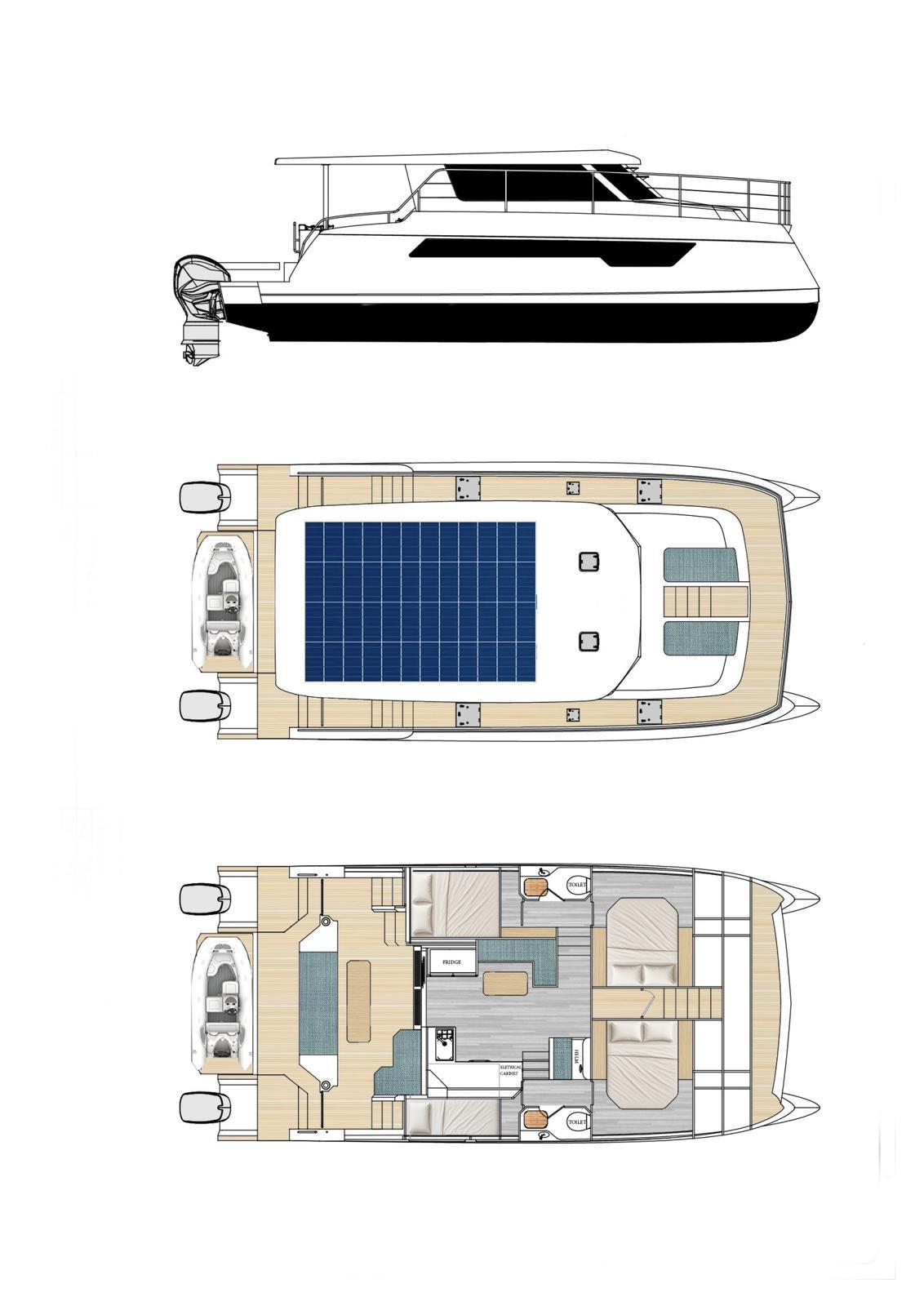

Layout: 3 cabins, 2 bathrooms
Design: Long-range cruising catamaran with enclosed hardtop
Construction: Fully molded, vacuum-infused FRP with PVC core and gelcoat finish
Certification: Built to ISO standard 1227 structural specification

Length Overall: 12.00 m
LOA with Pod: 12.85 m
Beam Overall: 6.050 m
Draft (Light Ship): 650 mm
Bridge Deck Clearance (Light Ship): 600 mm
Air Draft from DWL: 6.600 m
Displacement (Light Ship): 9,000 kg
Full Load Displacement: 15,000 kg
Fuel Capacity: 2 x 600 L = 1,200 L
Water Capacity: 2 x 300 L = 600 L
Holding Tank Capacity: 2 x 180 L = 360 L
Fuel Weight (Full Tanks): approx. 239 kg
Engine Configuration: 2 x Outboards (250–450 hp, owner supplied)
Top Speed: TBA
Cruise Speed: TBA

Walls & Surfaces: Light fairing primer and gloss topcoat roller finish or optional 3M wrap
Doors: Romana oak timber door frames, Formica/wrap doors
Flooring: Sprayed non-slip surface
Cabinet Doors: Formica/wrap with timber frames

Layout: Open salon and galley arrangement
Headliner: White vinyl
Galley Cabinets: Formica/wrap finish
Benchtops: White acrylic
Fridge/Freezer: Owner supplied – LG double-door with icemaker and chilled water
Microwave: Owner supplied
Sink: Stainless steel

Bed: Queen size / Double
Finish: Light fairing primer and gloss topcoat roller
Mattress: 100mm medium foam with cover

Bed: Double/Queen
Finish: Light fairing primer and gloss topcoat roller
Mattress: 100mm medium foam with cover

Shower & Basin: Wet head with hot/cold mixer, sump to holding tank
Toilets: 2 x TMC Luxury low-profile toilets
Finish: White gelcoat
Floor Grate: Teak

Engine Type: Owner-supplied Outboards (250–450 hp)
Steering: Electric (supplied with engines)
Fuel Tanks: 2 x 600 L aluminum petrol tanks
Diesel Tank: 1 x 90 L standard, optional second tank on port side

Deck Finish: White non-slip throughout
Fillers: 2 x fuel, 2 x freshwater, 2 x waste
Handrails: 32 mm stainless steel, 750 mm high, with 4 mm stainless intermediate lifelines
Bow Roller: Nylon with stainless mooring bollard
Windlass: Muir HR2500
Anchor: 1 x 35 kg galvanized anchor, 70 m x 10 mm G43 chain
Storage: Foredeck lockers and anchor locker for fenders and tackle
Hatches: Flush-mount Vetus
Mooring Cleats: 6 x 300 mm
Windows: Grey UV-tinted toughened glass

Deck Finish: White non-slip
Seating: Full-width aft settee with Sunbrella fabric
Extras: 2 x Ice chests, BBQ power connection
Shower: Transom hot and cold shower
Doors & Windows: Sliding aluminum salon door and window
Deck Drain: Sump in place of step

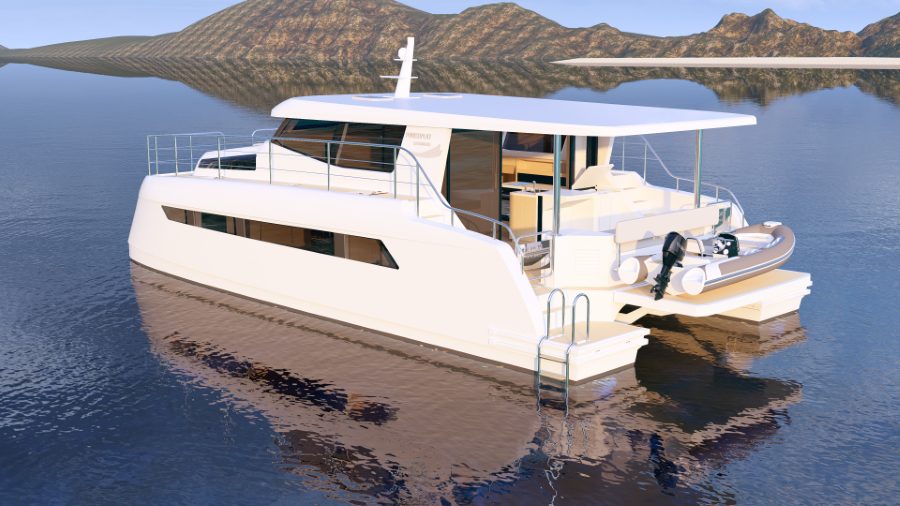

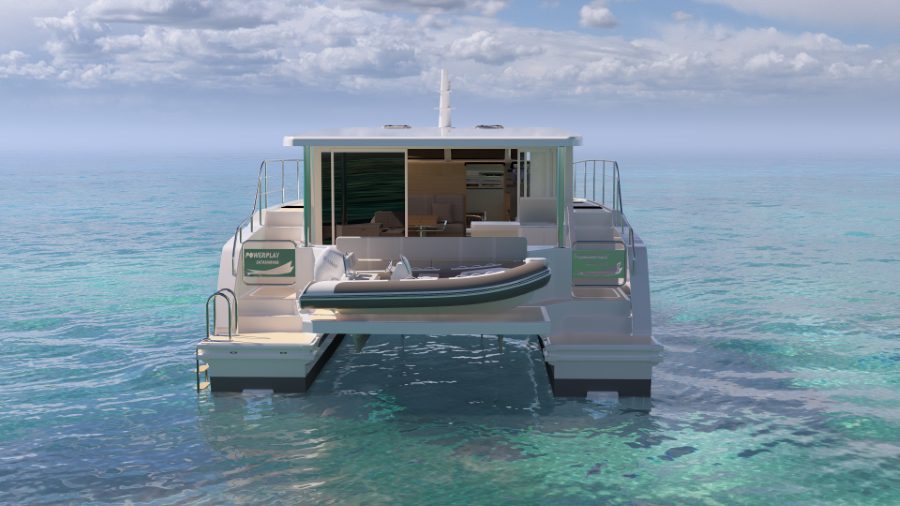

Davits: Composite with lifting tackle for 3 m tender and 15 hp outboard (max 200 kg)

Helm Position: Starboard console
Canopy: Molded FRP hardtop
Access: Enclosed helm with sliding side windows
Seating: Sunbrella fabric seating
Electronics: Ray63 VHF, Garmin 9” plotter (or equivalent), steering wheel, horn
Panels & Charging: AC and DC panels, USB and standard power points

House Batteries: 4 x Mastervolt AGM 12V 220Ah (total 800Ah)
Engine Start Batteries: 2 x Mastervolt AGM 130Ah
Genset: WhisperGen 8kVA (optional, provisioned)
DC System: 12V BEP switch panels
AC System: 220V 50Hz BEP switch panels
Inverter/Charger: Mastervolt Mass Combi 12/3000–100 (optional)
Air Conditioning: Pure Mind reverse cycle, 36,000 BTU
Lighting: 18 interior lights, 8 cockpit lights, 4 x deck floods, LED navigation
Power Sockets: 8 x electrical points
Underwater Lights: Optional (4 to 6 units)
Shore Power: 1 x 32A inlet port side with isolators and RCDs
Wiring Standard: AS 3000 marine-grade tinned wire (Tricab)

System Type: John Guest quick-connect plumbing
Freshwater Pumps: 2 x 12V Whale pressure pumps
Hot Water Heater: 1 x Quick 60 L, 220V
Holding Tanks: 2 x 180 L with manual shutoffs and deck pump-outs
Bilge Pumps: 2 x 750GPH per hull + 4 x electric auto/manual with float switches
Pod Bilge Pumps: 2 x Rule 500GPH
Toilets: 2 x TMC Luxury low-profile

WhisperGen 8kVA Generator: USD 21,500
Underwater Lights (x6): USD 3,600
Cookout BBQ (Classic or Teppanyaki): USD 1,800
CZone Power & Lithium Upgrade: USD 55,750
Includes: 4 x 250W solar panels, 1 x regulator, 1 x Mass Combi 24/3500–100 inverter, 2 x Mastervolt MLI Ultra 24/6000 Li-ion batteries
Watermaker (Spectra Newport 400, 12V): 63 L/h with Zion system – USD 19,750
Interior Finish Upgrade: POA
Chain Counter, Sound System, Clears: POA
Engine Options: Mercury 250, Yamaha 425–600 hp with foils, Cox diesel 300–350 hp, Yanmar 370 with Bravo stern drive – POA

Alternate Arrangement: 3-cabin configuration with king-size master and private bathroom (Price on application)
